Water well drilling rig

Product Introduction

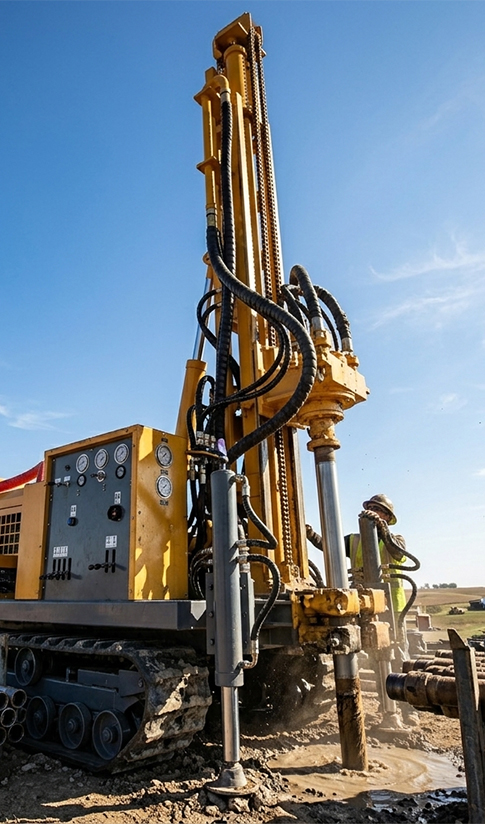

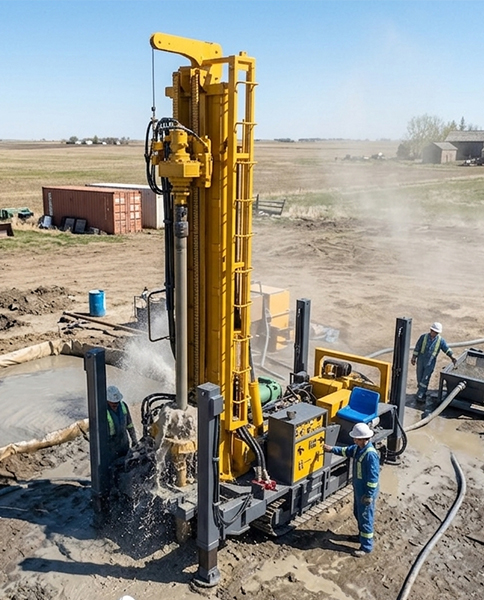

Water well drilling rigs are automatic drilling equipment integrating hydraulic drive, intelligent control, and a high-efficiency circulation system. They are suitable for agricultural irrigation, pasture drinking water, geothermal heat pumps, and small-scale engineering well construction. The equipment adopts a fully hydraulic power head or rotary drilling rig structure, enabling stepless speed regulation, automatic feeding, and rapid tower erection. It features fast drilling speed, high well quality, and easy operation. The entire machine can be equipped with trailer-mounted, vehicle-mounted, or tracked chassis to adapt to complex terrains such as plains, hills, deserts, and riverbanks.

Get a Quote

Online Chat

Hot-Selling Machine

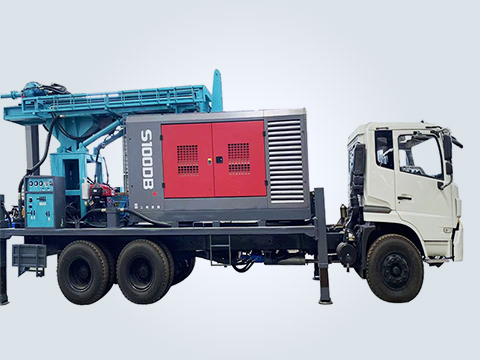

Truck mounted water well drilling rig

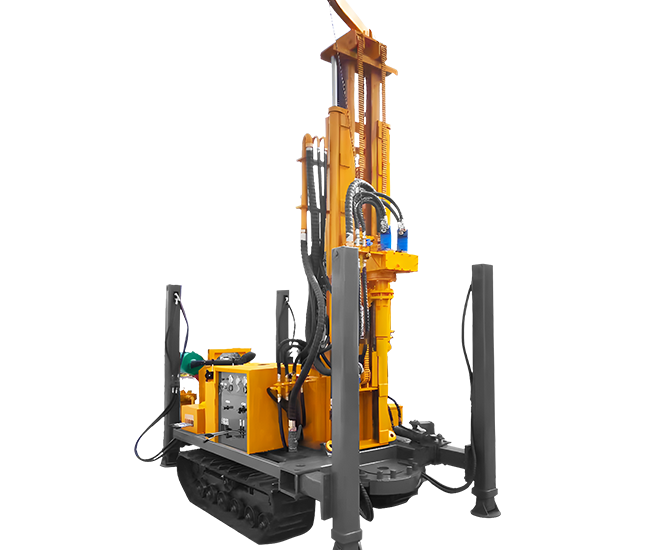

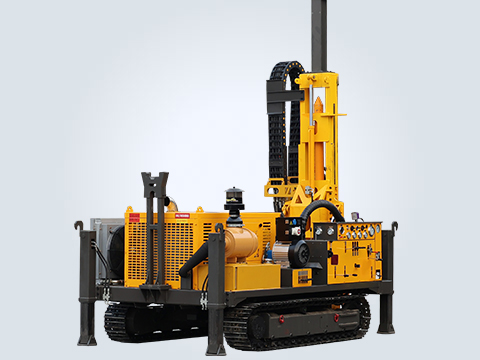

Crawler type water well drilling rig

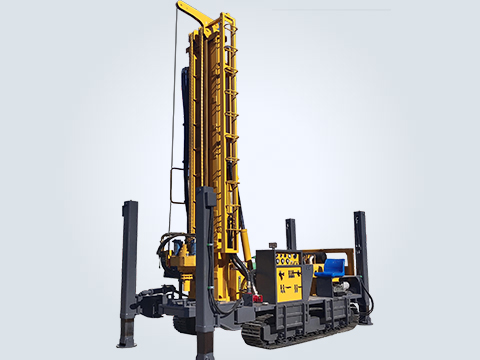

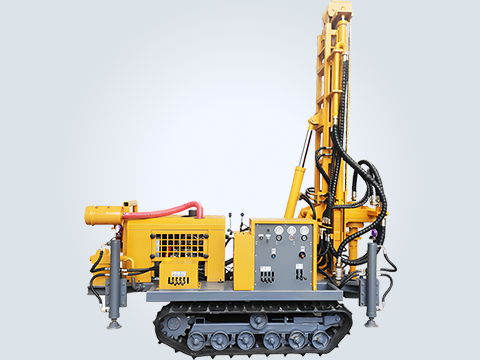

Hydraulic water well drilling rig

Main Technical Parameters

Model	YG-200	YG-300	YG-400
Weight(Ton)	5.5	9	10
Drilling Diameter(mm)	140-305	140-325	140-350
Drilling Depth(m)	200	300	400
Walking Speed(Km/h)	2.5	2.5	2.5
Climbing Angles	30	30	30
Power(Kw)	65	84	95
Pressure(Mpa)	1.7-3.0	1.7-3.3	1.7-3.5
Air Consumption（m³/Min）	17-30	17-35	17-35
Drilling Pipe Length(M)	1.5/2.0/3.0	1.5/2.0/3.0	1.5/2.0/3.0
Rig Lifting Force(T)	18	28	24
Dimension	3800×1700×2350	5500×1950×2780	5200×2000×2780

Product Advantages

Energy Saving and Cost Reduction

Utilizing a load-sensitive hydraulic system and a high-efficiency engine, it boasts low fuel consumption and high energy utilization, significantly reducing costs.

High-Precision Well Completion

Infinitely adjustable hydraulic feed ensures high borehole verticality, smooth well casing lowering, stable water production, and reliable well quality.

High-Efficiency Drilling

A high-torque hydraulic motor paired with high-toughness drill pipe performs exceptionally well in both loose and rock formations, increasing drilling speed by over 30%.

High Automation

One-button turret raising and lowering, automatic unhooking, intelligent anti-sticking, and mud pump linkage control reduce manual operation and enhance construction safety.

Non-Stop Operation

Durable hydraulic components and heavy-duty steel structure. Reduce maintenance interruptions and improve operational efficiency.

Get a Quote →

Areas of Application

Emergency drought relief well

Ranch drinking water well

Agricultural irrigation well

Ground source heat pump well

Engineering dewatering well

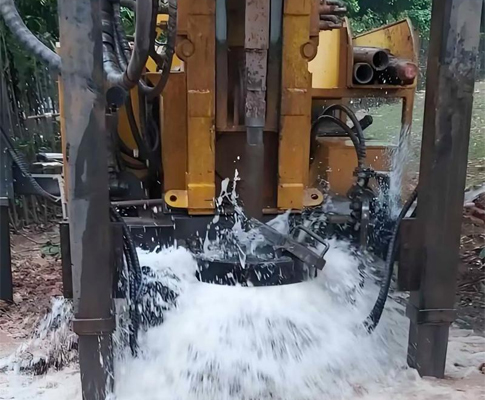

Emergency drought relief well

Ranch drinking water well

Agricultural irrigation well

Ground source heat pump well

Other Hot-Selling Machinery

Reverse circulation drilling rig

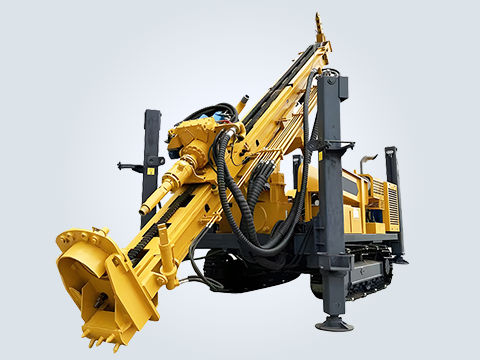

Fully hydraulic core drilling rig

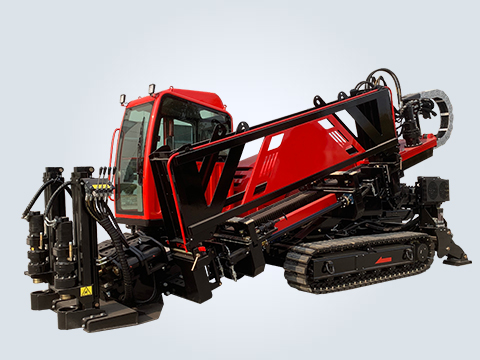

Horizontal directional drilling rig
